19300480292

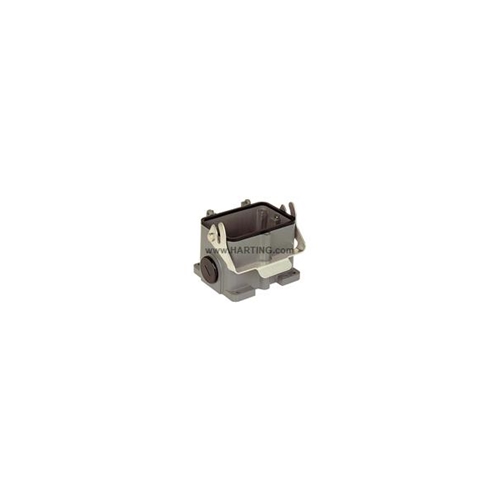

HARTING HAN B BASE SURFACE

ENTRY 2 X M32 ENTRY

Harting

Your cart total:

.

Checkout

0

19300480292
































RoHS Conformity:Please contact our customer service
Size:48 B
Locking Type:1 lever on the housing
Material, Locking Lever:Stainless steel
Locking Lever:single locking lever
Type of Hood Housing:Housings, surface mounting
Series:Han B
Colour, Locking Element:RAL 7032 (light grey)
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:aluminium die-cast
Hood:Yes
Housing:Yes
No. of Cable Entries:2
Size, Hood - Housing:M32
Cable Entry:side entry
Style:High construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range:Han B Base Surface HC 1 Lever
Height (mm):99
Width (mm):148
Depth (mm):152
Net Weight:1,277 g

No extended details available.
