19300241256

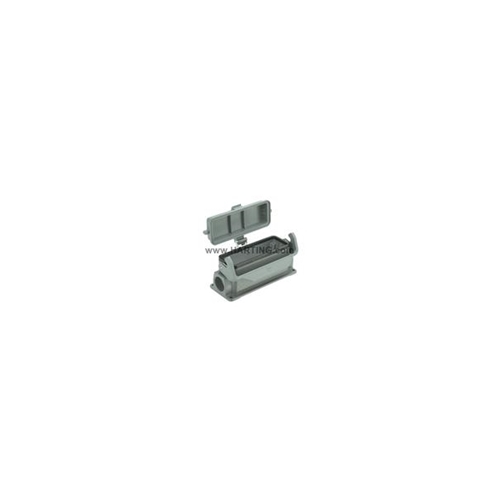

HARTING HAN B BASE SMLC PLASTIC COVER

1 X M25 SIZE 24B SINGLE LEVER

Harting

Your cart total:

.

Checkout

0

19300241256

































Han-Easy Lock:Yes
RoHS Conformity:Yes
Size:24 B
Special Style:with thermo-plastic cover
Locking Type:1 lever on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:single locking lever
Type of Hood Housing:Housings, surface mounting
Series:Han B
Colour, Locking Element:RAL 7032 (light grey)
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:aluminium die-cast
Housing:Yes
No. of Cable Entries:1
Size, Hood - Housing:M25
Cable Entry:side entry
Style:Low construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range:Han B Base SM LC plastic cover 1xM25
Height (mm):56
Width (mm):144
Depth (mm):95
Net Weight:355 g

No extended details available.
