19300162296

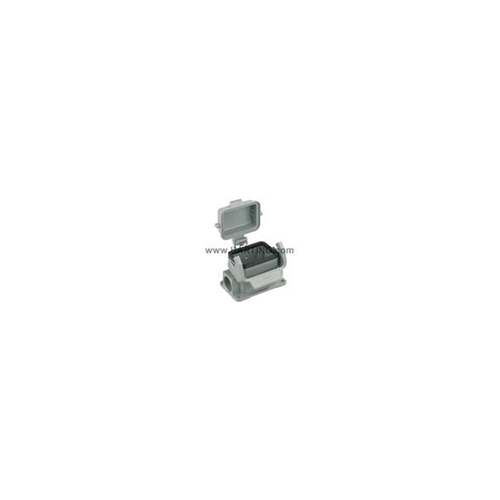

HARTING SURFACE MTD NSG HAN 16B

Harting

Your cart total:

.

Checkout

0

19300162296
































Han-Easy Lock:Yes
RoHS Conformity:Please contact our customer service
Size:16 B
Special Style:with metal cover
Locking Type:1 lever on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:single locking lever
Type of Hood Housing:Housings, surface mounting
Series:Han B
Colour, Locking Element:RAL 7032 (light grey)
Material, Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:aluminium die-cast
Housing:Yes
No. of Cable Entries:2
Size, Hood - Housing:M25
Cable Entry:side entry
Style:Low construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range:Han B Base SM LC Metal Cove 2 x M25
Height (mm):56
Width (mm):117
Depth (mm):95
Net Weight:337 g

No extended details available.
