19300160548

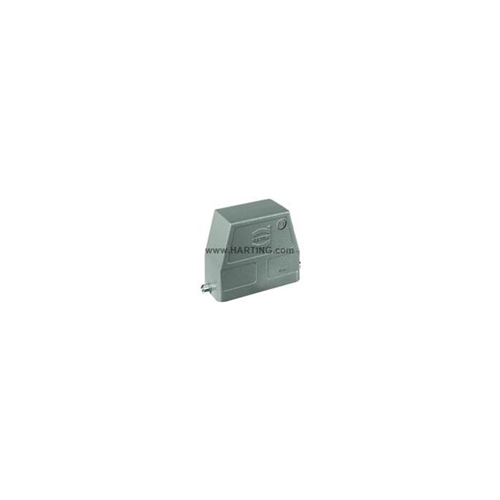

HARTING SIDE MOUNT HOOD

Your cart total:

0

19300160548
































Han-Easy Lock:Yes
RoHS Conformity:Yes
Size:16 B
Locking Type:1 lever on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:single locking lever
Type of Hood - Housing:Hoods
Series:Han B
Colour, Locking Element:RAL 7032 (light grey)
Surface, Hood - Housing:powder-coated
Material Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:aluminium die-cast
Hood:Yes
No. of Cable Entries:1
Size, Hood - Housing:M40
Cable Entry:side entry
Style:High construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range:Han B Hood Side Entry 2 Pegs M40
Height (mm):76
Width (mm):111.5
Depth (mm):45
Net Weight:213.6 g
