19300160297

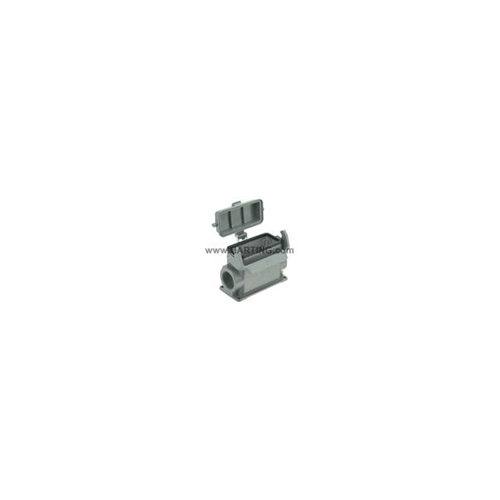

HARTING 16 PIN HIGH BULKHEAD

Harting

Your cart total:

.

Checkout

0

19300160297


































Han-Easy Lock:Yes
RoHS Conformity:Yes
Size:16 B
Special Style:with thermo-plastic cover
Locking Type:1 lever on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:single locking lever
Type of Hood Housing:Housings, surface mounting
Series:Han B
Colour, Locking Element:RAL 7032 (light grey)
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:aluminium die-cast
Housing:Yes
No. of Cable Entries:2
Size, Hood - Housing:M32
Cable Entry:side entry
Style:High construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Plastic Cover:Yes
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range:Han B Base SM HC 2 x M32 plastic cover
Height (mm):80.8
Width (mm):117
Depth (mm):92.5
Net Weight:434 g
