19300101521
































Han-Easy Lock:Yes
RoHS Conformity:Please contact our customer service
Size:10 B
Locking Type:2 levers on the housing
Material, Locking Lever:Stainless steel
Locking Lever:double locking lever

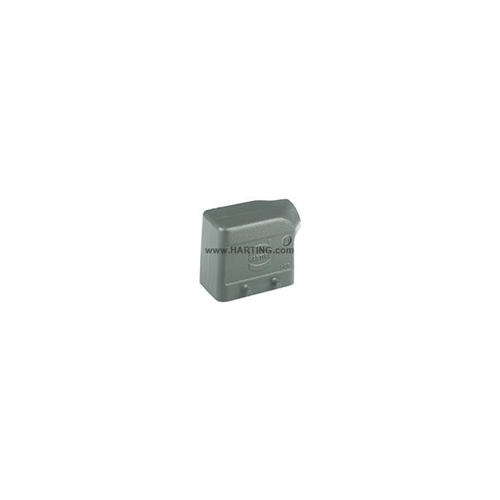

Type of Hood - Housing:Hoods
Series:Han B
Colour, Locking Element:RAL 7032 (light grey)
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:aluminium die-cast
Hood:Yes
No. of Cable Entries:1
Size, Hood - Housing:M25
Cable Entry:side entry
Style:Low construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han 10B HOOD SE LC M25
Height (mm):57
Width (mm):72.6
Depth (mm):57
Net Weight:145.4 g
