19300101440

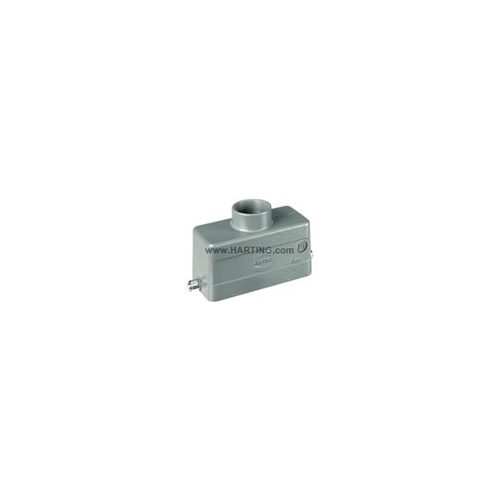

HARTING TOP ENTRY HOOD

Harting

Your cart total:

.

Checkout

0

19300101440

































Han-Easy Lock:Yes
RoHS Conformity:Yes
Size:10 B
Locking Type:1 lever on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:single locking lever
Type of Hood - Housing:Hoods
Series:Han B
Colour, Locking Element:RAL 7032 (light grey)
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:aluminium die-cast
Hood:Yes
Housing:Yes
No. of Cable Entries:1
Size, Hood - Housing:M20
Cable Entry:top entry
Style:High construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make :Harting
Product Range :Han 10 B Hood Top Entry M20
Height (mm):58.5
Width (mm):90.6
Depth (mm):43
Net Weight:129.7 g
