19200320272

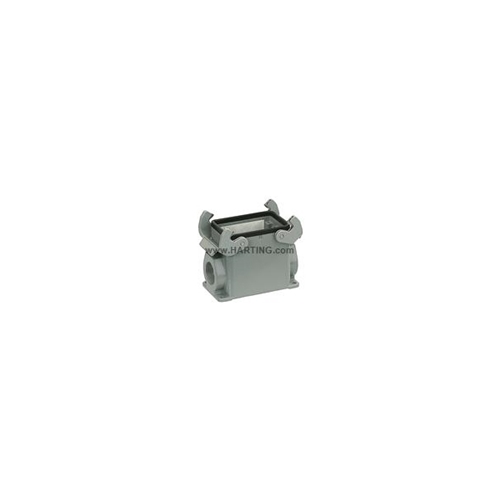

HARTING HAN SIZE 32A SURFACE MOUNT

HOUSING SIDE ENTRY 2 LOCKING LEVERS 2 X M32 ENTRY

Harting

Your cart total:

.

Checkout

0

19200320272
































RoHS Conformity:Please contact our customer service
Size:32 A
Locking Type:2 levers on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:double locking lever
Type of Hood - Housing:Housings, surface mounting
Series:Han A
Colour, Locking Element:RAL 7037 (grey)
Surface Hood Housing :powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:aluminium die-cast
No. of Cable Entries:2
Size, Hood - Housing:M32
Cable Entry:side entry
Style:High construction
Flammability Locking Lever Acc. to UL 94:V 0
Flammability Seal Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Flammability Hoods - Housings Acc. to UL 94:V 0
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han A Base Surface HC 2 Levers 2 x M32
Height (mm):81.8
Width (mm):106
Depth (mm):57
Net Weight:413.9 g

No extended details available.
