19200160546

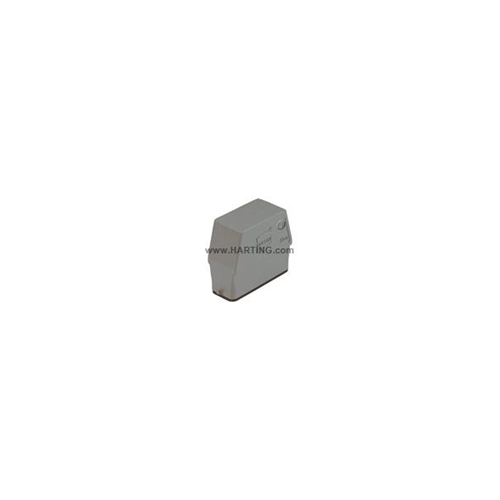

HARTING HAN A HOOD SIDE ENTRY HC2 PEGS

M25

Harting

Your cart total:

.

Checkout

0

19200160546



































Han-Easy Lock:Yes
RoHS Conformity:Yes
Size:16 A
Locking Type:1 lever on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:single locking lever
Type of Hood - Housing:Hoods
Series:Han A
Colour, Locking Element:RAL 7037 (grey)
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:aluminium die-cast
Hood:Yes
Hoods and Housings: Case of Operation:Metal hoods/housings for industrial applications
No. of Cable Entries:1
Size, Hood - Housing:M25
Cable Entry:side entry
Style:High construction
Flammability Locking Lever Acc. to UL 94:V 0
Flammability Seal Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Flammability Hoods - Housings Acc. to UL 94:V 0
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han A Hood Side Entry HC 2 Pegs M25
Height (mm):70.3
Width (mm):88.3
Depth (mm):36
Net Weight:165.1 g

No extended details available.
