19200031750

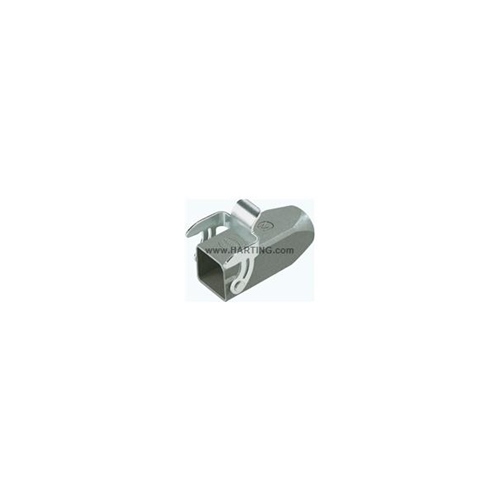

HARTING HAN A HOOD COUPLER 1 LEVER M20

Harting

Your cart total:

.

Checkout

0

19200031750



































RoHS Conformity:Yes
Size:3 A
Locking Type:1 lever on the hood
Material, Locking Lever:steel, zinc-plated
Locking Lever:double locking lever
Type of Hood - Housing:Hoods, cable to cable
Series:Han A
Colour, Locking Element:RAL 7037 (grey)
Surface Hood Housing :powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:zinc die-cast
Net Weight:72 g
Hood:Yes
Hoods and Housings, Case of Operation:Metal hoods/housings for industrial applications
No. of Cable Entries:1
Size, Hood - Housing:M20
Cable Entry:top entry
Flammability Locking Lever Acc. to UL 94:V 0
Flammability Seal Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Flammability Hoods - Housings Acc. to UL 94:V 0
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP44 / IP67 is achieved with seal screw 09 20 000 9918
Series, Hood - Housing:Han 3 A
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han A Hood Coupler 1 Lever M20
Height (mm):57
Width (mm):33.6
Depth (mm):24.2
Net Weight:72 g

No extended details available.
