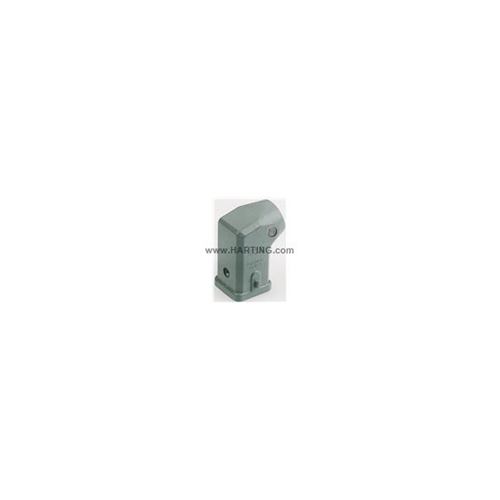

HARTING HOOD

Harting

Your cart total:

.

Checkout

0

19200031640


































RoHS Conformity:Yes
Size:3 A
Locking Type:1 lever on the housing
Material, Locking Lever:steel, zinc-plated
Locking Lever:double locking lever
Type of Hood - Housing:Hoods
Series:Han A
Colour, Locking Element:RAL 7037 (grey)
Surface Hood Housing :powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:zinc die-cast
Net Weight:80.8 g
Hood:Yes
Hoods and Housings, Case of Operation:Plastic hoods/housings for industrial applications
No. of Cable Entries:1
Size, Hood - Housing:M20
Cable Entry:side entry
Flammability Locking Lever Acc. to UL 94:V 0
Flammability Seal Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Flammability Hoods - Housings Acc. to UL 94:V 0
Approval GL:Yes
Series, Hood - Housing:Han 3 A
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han A Hood Angled Entry 2 Pegs M20
Height (mm):54.3
Width (mm):33.4
Depth (mm):28
Net Weight:80.8 g
