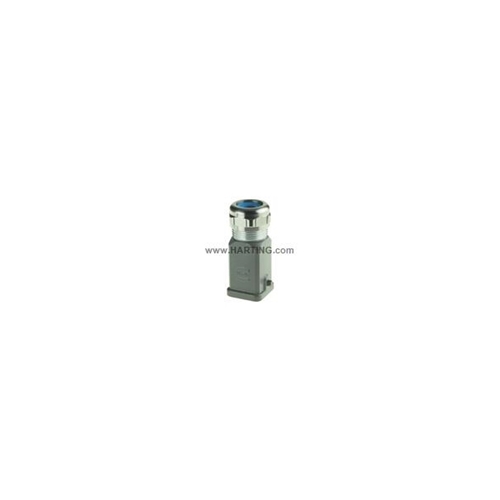

HARTING TOP ENTRY HOOD

Harting

Your cart total:

.

Checkout

0

19200031421



































Cable Seal:6 ... 12 mm
RoHS Conformity:Yes
Size:3 A
Locking Type:1 lever on the housing
Material, Locking Lever:Steel, zinc-plated
Locking Lever:double locking lever
Type of Hood - Housing:Hoods
Series:Han A
Colour, Locking Element:RAL 7037 (grey)
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:zinc die-cast
Hood:Yes
Hoods and Housings: Case of Operation:Metal hoods/housings for industrial applications
No. of Cable Entries:1
Size, Hood - Housing:M25
Cable Entry:top entry
Flammability Locking Lever Acc. to UL 94:V 0
Flammability Seal Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Flammability Hoods - Housings Acc. to UL 94:V 0
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP44 / IP67 is achieved with seal screw 09 20 000 9918
Series, Hood - Housing::Han 3 A
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make :Harting
Product Range :Han 3A Hood Top Entry M25 Low Constr.
Height (mm):66.5
Width (mm):33.4
Depth (mm):28
Net Weight:77.8 g
