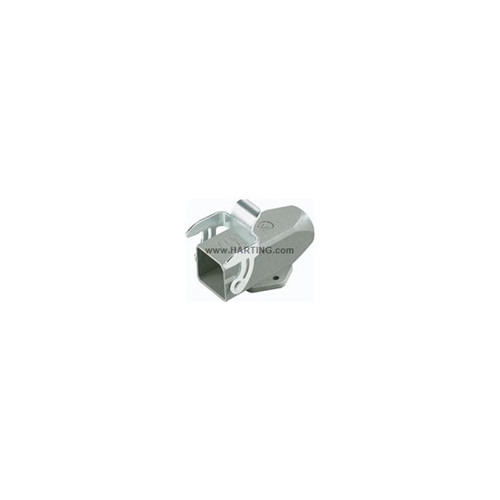

HARTING HEAVY DUTY HOUSING BOTTOM

Harting

Your cart total:

.

Checkout

0

19200031252


































RoHS Conformity:Yes
Size:3 A
Special Style:bottom closed
Locking Type:1 lever on the housing
Material, Locking Lever:steel, zinc-plated
Locking Lever:Double locking lever
Type of Hood - Housing:Housings, surface mounting
Series:Han A
Colour, Locking Element:RAL 7037 (grey)
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 7037 (grey)
Material, Hood - Housing:zinc die-cast
Hood:Yes
Hoods and Housings: Case of Operation:Metal hoods/housings for industrial applications
No. of Cable Entries:1
Size, Hood - Housing:M20
Cable Entry:Top entry
Flammability Locking Lever Acc. to UL 94:V 0
Flammability Seal Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Flammability Hoods - Housings Acc. to UL 94:V 0
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP44 / IP67 is achieved with seal screw 09 20 000 9918
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :HAN3A M20 BOTTOM CLOSED
Height (mm):40
Width (mm):40
Depth (mm):57.6
Net Weight:82.9 g
