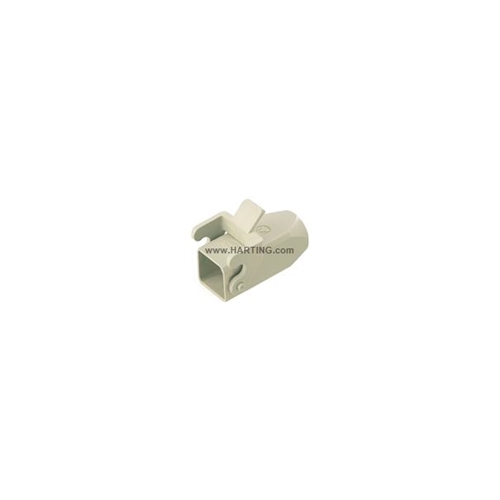

HARTING THERMOPLASTIC CABLE/CABLE

HOUSING

Harting

Your cart total:

.

Checkout

0

19200030720



































RoHS Conformity:Yes
Size:3 A
Locking Type:1 lever on the housing
Material, Locking Lever:Polyamide
Locking Lever:double locking lever
Type of Hood - Housing:Hoods, cable to cable
Series:Han A
Colour, Locking Element:RAL 7032 (light grey)
Material, Seal:NBR
Colour, Hood - Housing:RAL 7032 (light grey)
Material, Hood - Housing:polycarbonate
Hood:Yes
Housing:Yes
Hoods and Housings: Case of Operation:Plastic hoods/housings for industrial applications
No. of Cable Entries:1
Size, Hood - Housing:M20
Cable Entry:top entry
Style:Low construction
Flammability Locking Lever Acc. to UL 94:V 0
Flammability Seal Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Flammability Hoods - Housings Acc. to UL 94:V 0
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP67
Series, Hood - Housing:Han 3 A
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han A Hood Coupler Thermoplastic M20
Height (mm):57
Width (mm):35
Depth (mm):24
Net Weight:16.4 g
