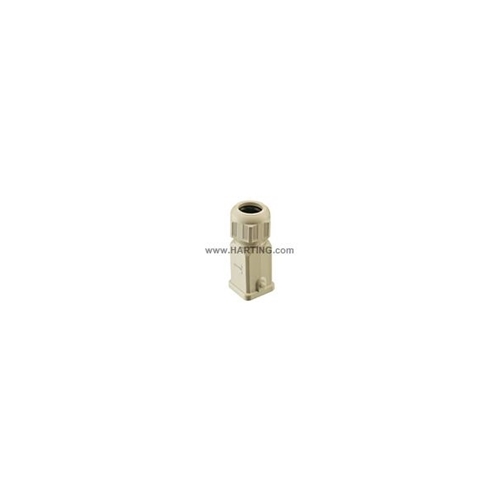

HARTING 3 ATE HOOD PLASTIC

Harting

Your cart total:

.

Checkout

0

19200030410

































Cable Seal:9 ... 17 mm
RoHS Conformity:Please contact our customer service
Size:3 A
Locking Type:1 lever on the housing
Material, Locking Lever:Polyamide
Locking Lever:double locking lever
Series:Han A
Colour, Locking Element:RAL 7032 (light grey)
Material, Seal:NBR
Colour, Hood - Housing:RAL 7032 (light grey)
Material, Hood - Housing:polycarbonate
Hood:Yes
Hoods and Housings: Case of Operation:Plastic hoods/housings for industrial applications
Cable Entry:top entry
Flammability Locking Lever Acc. to UL 94:V 0
Flammability Seal Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Flammability Hoods - Housings Acc. to UL 94:V 0
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Series, Hood - Housing:Han 3 A
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Clamping Range (accessories), Min.:9 mm
Clamping Range (accessories), Max.:17 mm
Make:Harting
Product Range :3A TE Hood, plastic, 9-17mm cord grip
Height (mm):65
Width (mm):35.1
Depth (mm):26.6
Net Weight:18.3 g
