19120080526

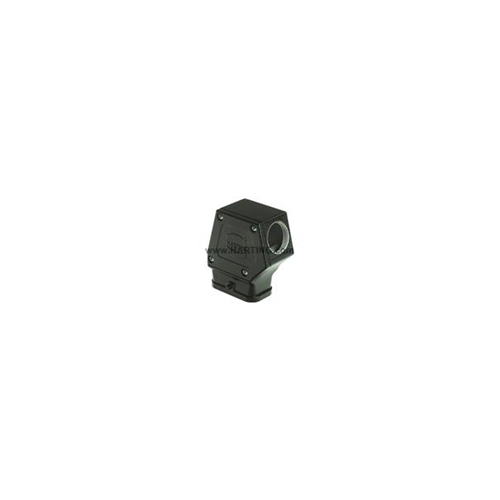

HARTING SIDE ENTRY HOOD M25

Harting

Your cart total:

.

Checkout

0

19120080526


































RoHS Conformity:Yes
Size:Han-Compact
Special Style:for standard cable glandincluding separate PE contact
Locking Type:1 lever on the housing
Material, Locking Lever:Stainless steel
Locking Lever:double locking lever
Type of Hood - Housing:Hoods
Series:Han-Compact
Hint:for all inserts of size Han-Compact
Colour, Locking Element:RAL 9005 (black)
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 9005 (black)
Material, Hood - Housing:zinc die-cast
Hoods and Housings, Case of Operation:Hoods/Housings for higher EMC requirements
No. of Cable Entries:1
Size, Hood - Housing:M25
Cable Entry:side entry
Style:High construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Flammability Hoods - Housings Acc. to UL 94:V 0
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han Compact - GS - M25
Height (mm):73
Width (mm):65
Depth (mm):35
Net Weight:313.5 g

No extended details available.
