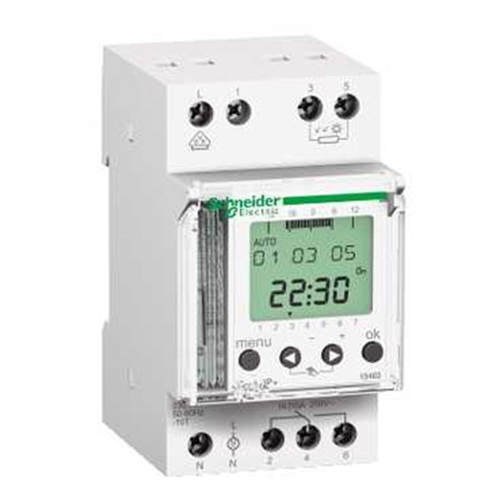

15483


SCHNEIDER PROG LIGHT SWITCH (15286 NOW SUPERCEDED

BY 15483)

Schneider Electric

Your cart total:

.

Checkout

Alternative Products:

Discontinued

15483























Power Consumption :3 VA
Maximum Switching Current:10 A - 250 V AC pf = 0.6… 16 A - 250 V AC pf = 1
(Ue) Rated Operational Voltage :230 V ( + 10 % -15 % ) AC 50/60 Hz
Display Type:Backlit LCD
Time Delay:20 s to 140 s (on closing )…20 s to 140 s ( on contact breaking )…80 s ( by default )
Maximum Number Of Switchings:42
Minimum Interval Duration:1 min
Backup Time:5…6
Mounting Support:DIN rail
9mm Pitches :5
Light Intensity Adjustment:2…50 lux/350...2100 lux/60…300 lux
Connection - Terminals:X 1 screw terminal : <=6 mm²
Cable Stiffness:Flexible, Rigid
Electrical Insulation Class:Class 2
Make :Schneider Electric
Series:Acti 9
Product Range:Programmable twilight switch with time switch function
Height (mm):83.5
Width (mm):45
Depth (mm):65
Weight (kg):0.323

No extended details available.
