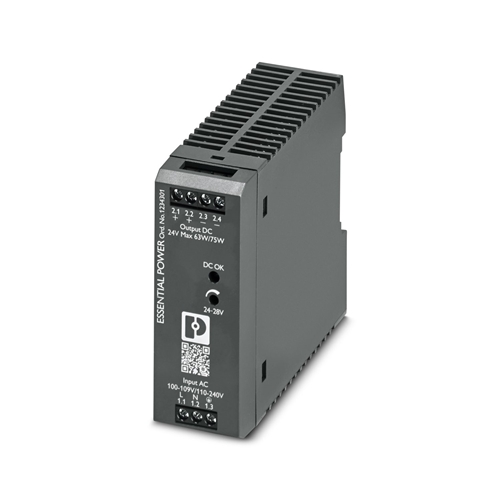

| AC operation: | |
| Supply system configuration: | TN, TT, IT (PE) |
| Nominal input voltage range: | 100 V AC ... 240 V AC |
| Input voltage range: | 110 V AC ... 240 V AC ±10 % (PN = 75 W), 100 V AC ... 109 V AC -15 % ... +10 % (PN = 63 W) |
| Typical national grid voltage: | 120 V AC, 230 V AC |
| Voltage type of supply voltage: | AC |
| Inrush current: | typ. 27 A (at 25 °C) |
| Inrush current integral (I2t): | typ. 0.6 A²s |
| Frequency range (fN): | 50 Hz ... 60 Hz ±10 % |
| Mains buffering time: | typ. 14 ms (120 V AC), typ. 70 ms (230 V AC) |
| Current consumption: | max. 1.5 A (75 W), max. 1.5 A (63 W), typ. 1.3 A (110 V AC (75 W)), typ. 0.75 A (240 V AC (75 W)), typ. 1.2 A (100 V AC (63 W)), typ. 1.1 A (109 V AC (63 W)) |
| Protective circuit: | Transient protection; Varistor |
| Switch-on time: | typ. 1 s |
| Device mains fuse: | 3.15 A internal (device protection), fast-blow |
| Recommended breaker for input protection: | 6 A ... 16 A (Characteristic B, C, D, K or comparable) |
| Discharge current to PE: | < 3.5 mA |
| Efficiency: | typ. 88 % (120 V AC), typ. 89 % (230 V AC) |
| Nominal output voltage: | 24 V DC |
| Setting range of the output voltage (USet): | 24 V DC ... 28 V DC (> 24 V DC, constant capacity restricted) |
| Nominal output current (IN): | max. 3.125 A (PN = 75 W), max. 2.62 A (PN = 63 W) |
| Short-circuit-proof: | yes |
| No-load proof: | yes |
| Crest factor: | typ. 3 (120 V AC), typ. 4 (230 V AC) |
| Output power (PN): | 75 W (240 V AC), 63 W (100 V AC) |
| Connection in parallel: | yes, for increasing power and redundancy with diode |
| Connection in series: | yes, for increased output voltage |
| Feedback voltage resistance: | ≤ 35 V DC |
| Protection against overvoltage at the output (OVP): | ≤ 35 V DC |
| Residual ripple: | typ. 50 mVPP (with nominal values) |
| Control deviation: | < 2 % (change in load, static 10 % ... 90 %), < 4 % (change in load, dynamic 10 % ... 90 %), < 0.1 % (change in input voltage ±10 %) |
| Rise time: | < 100 ms (UOut = 10 % ... 90 %) |
| Minimum no-load power dissipation: | < 1 W (120 V AC) |
| Maximum no-load power dissipation: | < 1 W (230 V AC) |
| Minimum nominal load power dissipation: | < 11 W (120 V AC) |
| Power loss nominal load max.: | < 9 W (230 V AC) |
| Integrated fuse protection: | no |
| Input: | |
| Position: | 1.x |
| Identification: | 1.1 (), 1.2 (L), 1.3 (N) |
| Conductor connection: | |
