11123001502

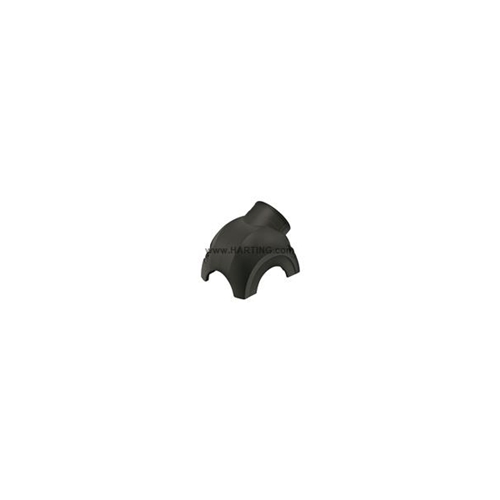

HARTING HAN-YELLOCK SIDE ENTRY M32

Harting

Your cart total:

.

Checkout

0

11123001502

































RoHS Conformity:Please contact our customer service
Size:30
Un-/Locking Temperature, Min.:-10 C
Un-/Locking Temperature, Max.:85 C
Locking Type:Screw locking
Type of Hood - Housing:Shell
Series:Han-Yellock
Wire Gauge PE Contact, Max.:4 mm2
Material, Screwing:stainless steel
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 7021 black/grey
Material, Hood - Housing:aluminium die-cast
Hood:Yes
Hoods and Housings - Case of Operation:Metal hoods/housings for industrial applications
No. of Cable Entries:1
Size, Hood - Housing:M32
Cable Entry:side entry
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65 / IP67
Series Han-Yellock:Han-Yellock 30
Tightening Torque of Fixing Screws:1.2 Nm
Tightening Torque of Fixing Screws:2 Nm
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max:125 C
Make :Harting
Product Range :Han-Yellock side entry M32
Height (mm):63.4
Width (mm):56
Depth (mm):72.7
Net Weight:98.3 g
