11123000301

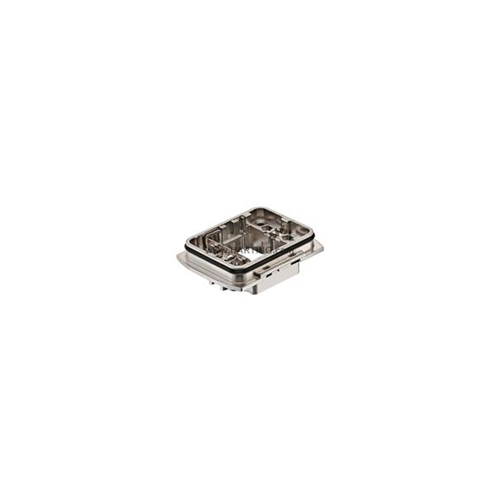

HARTING HAN-YELLOCK BULKHEAD HOUSING 30

Harting

Your cart total:

.

Checkout

0

11123000301
































Mechanical Working Life - Mating Cycles:< 500
No. of Modules:3
RoHS Conformity:Please contact our customer service
Size:30
Un-/Locking Temperature, Min.:-10 C
Un-/Locking Temperature, Max.:85 C
Locking Type:Push button
Material, Locking Lever:Polyamide + stainless steel
Type of Hood Housing:Housings, bulkhead mounting
Series:Han-Yellock
Wire Gauge PE Contact, Max.:4 mm2
First Coat:zinc passivation
Material, Seal:NBR
Colour, Hood Housing:metallic
Material, Hood Housing:zinc die-cast
Hood:Yes
Hoods and Housings, Case of Operation:Metal hoods/housings for industrial applications
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65 / IP67
Screw Size:M4
Series Han-Yellock:Han-Yellock 30
Tightening Torque of Fixing Screws:1 Nm2.3 Nm
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make :Harting
Product Range :Han-Yellock bulkhead housing 30
Height (mm):23.4
Width (mm):56
Depth (mm):74.5
Net Weight:123.4 g

No extended details available.
