11123000110

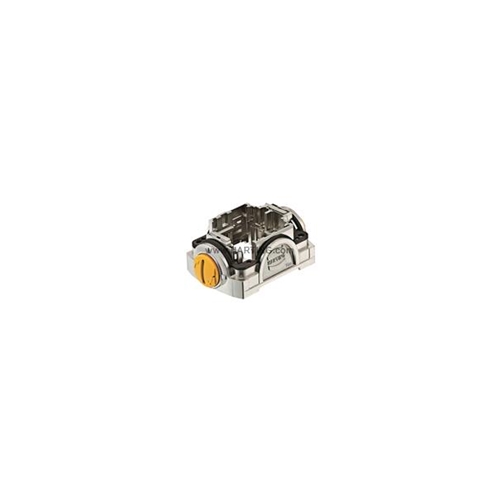

HARTING HAN-YELLOCK CARRIER HOOD 30

GROOVE BUTTON

Harting

Your cart total:

.

Checkout

0

11123000110
































Mechanical Working Life - Mating Cycles:< 500
No. of Modules:3
RoHS Conformity:Please contact our customer service
Size:30
Un-/Locking Temperature, Min.:-10 C
Un-/Locking Temperature, Max.:85 C
Locking Type:push button, slot
Material, Locking Lever:Polyamide + stainless steel
Type of Hood Housing:Carrier hood
Series:Han-Yellock
Wire Gauge PE Contact, Max.:4 mm2
Colour, Locking Element:Melon yellow
First Coat:zinc passivation
Material, Seal:NBR
Colour, Hood Housing:metallic
Material, Hood Housing:zinc die-cast
Hood:Yes
Hoods and Housings, Case of Operation:Metal hoods/housings for industrial applications
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65 / IP67
Series Han-Yellock:Han-Yellock 30
Tightening Torque of Fixing Screws:1 Nm2.3 Nm
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make :Harting
Product Range :Han-Yellock carrier hood30 groove button
Height (mm):34
Width (mm):56
Depth (mm):87.6
Net Weight:217 g
