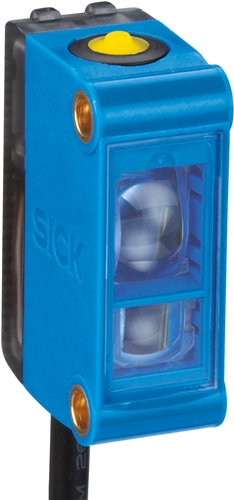

SICK (1067293) CSM-WN11122P COLOUR SENSOR

Sick

Your cart total:

.

Checkout

0

1067293


































Manufacturer:SICK
Model:CSM-WN11122P
Height (mm):31.5
Width (mm):12
Depth (mm):21
Weight (kg):0.25
Series:Color sensor
Sensing distance:12.5 mm
Housing design:Rectangular
Sensing distance tolerance:± 3 mm
Light source:LED, RGB
Wave Length:640 nm, 525 nm, 470 nm
Light spot size:1.5 mm x 6.5 mm
Light spot direction:Vertical
Setting:Teach-in button
Teach-in mode:1-point-teach-in
Supply voltage:12 V DC ... 24 V DC
Ripple:< 5 Vpp
Power consumption:< 50 mA
Switching frequency:1.7 kHz
Response time:300 µs
Jitter:150 µs
Output type:NPN
Switching output:NPN: HIGH = approx. VS / LOW = 2 V
Output (channel):1 color
Output current:< 100 mA
Input, teach-in (ET):NPN / Teach: U < 2 V / Run: U = 10 V ... < UV or open
Connection type:Cable with M12 male connector, 4-pin, 0.2 m
Protection class:III
Circuit protection:Refer to data sheet
Enclosure rating:IP 67
Housing material:ABS
