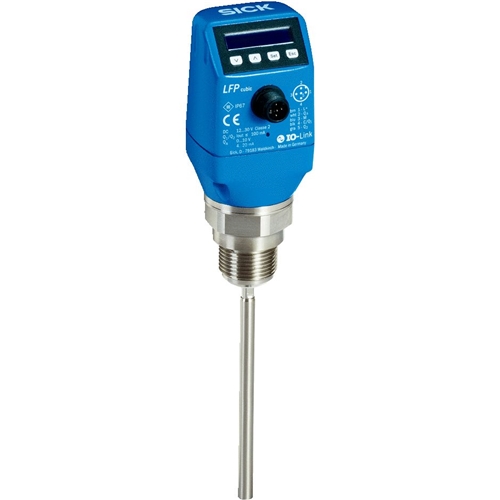

SICK LFP0500-A4NMB TDR LEVEL SENSOR

Sick

Your cart total:

.

Checkout

0

1057076














































Manufacturer:SICK
Model:LFP0500-A4NMB
Series:Level Sensors
Medium:Fluids
Measurement:Switch, continuous
Probe length:500 mm
Process pressure:-1 bar … 10 bar
Process temperature:-20 °C … 100 °C
GOST approval:Yes
RoHS certificate:Yes
IO-Link:Yes
Maximum level change:500 mm/s
Resolution:< 2 mm
Accuracy of sensor element:± 5 mm
Repeatability:< 2 mm
Dielectricity constant:> 1.8 with coaxial tube, > 5 for mono probe
Inactive area at process connector:25 mm
Inactive area at probe end:10 mm
Conductivity:No limitation
Response time:< 400 ms
Housing material:Plastic PBT
Max probe lead:6 Nm
Process connection:G ¾ A
Wetted parts:1.4404, PTFE
Temperature drift:< 0.1 mm/K
Enclosure rating:IP 67 (EN 60529)
Supply voltage:12 V DC … 30 V DC
Power consumption:< 100 mA at 24 V DC without output load
Protection class:III
Initialisation time:< 5 s
Output signal:1 PNP transistor output (Q1) and 1 PNP / NPN transistor output (Q2) switchable, Analogue output 4 mA ... 20 mA, 0 V ... 10 V automatic switching to a current or voltage output depending on the load.
Output load:0 V … 10 V > 750 Ohm at Uv >= 14 V, 4 mA ... 20 mA < 350 Ohm at Uv > 12 V, 4 mA … 20 mA < 500 Ohm at Uv > 15 V
Upper signal level:20 mA … 20.5 mA
Lower signal level:3.8 mA … 4 mA
Hysteresis:Min. 2 mm, free adjustable
Output current:< 100 mA
Signal voltage HIGH:Vs - 2 V
Signal voltage LOW:< 2 V
Capacitive load:100 nF
Inductive load:< 1 H
Connection type:Round connector M12 x 1, 5-pin
EMC:EN 61326-1-2006, 2004/108/EG
Ambient operating temperature:-20 °C … 60 °C
Ambient storage temperature:-40 °C … 80 °C
