1050271

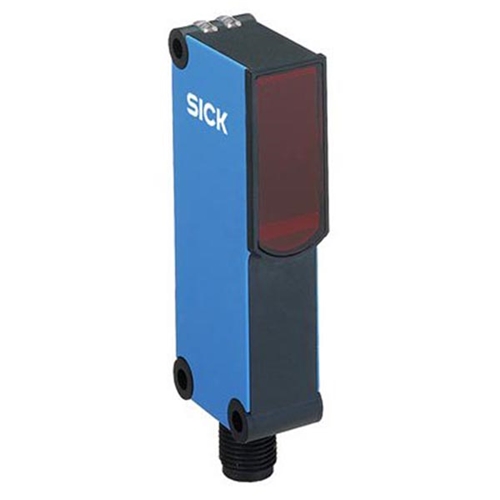

SICK PHOTO ELECTRIC SENSOR (1050271)

Sick

Your cart total:

.

Checkout

Discontinued

1050271




































Manufacturer:SICK
Model:WL14-2P431
Height (mm):75.5
Width (mm):17.6
Depth (mm):33.5
Weight (kg):0.04
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor, standard optics
Housing design:Rectangular
Sensing range max:0.15 m … 17 m
Sensing range:0.15 m … 12 m
Type of light:Visible red light
Light source:PinPoint LED
Wave length:637 nm
Teach-in:Single teach-in button
Sensitivity Adjustment:Teach-in
Light spot size (distance):Ø 30 mm (2 m)
Supply voltage:10 V DC … 30 V DC
Power consumption:< 35 mA
Output type:PNP
Output function:Complementary
Switching mode:Light/dark-switching
Output current Imax:< 100 mA
Response time:< 2.5 ms
Switching frequency:200 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, C, D
Polarisation filter:Yes
Housing material:ABS, Plastic
Optics material:PMMA
Enclosure rating:IP 67
Ambient operating temperature:-25 °C … 60 °C
Ambient storage temperature:-40 °C … 70 °C
UL File Number:NRKH.E181493 & NRKH7.E181493

No extended details available.
