1049077

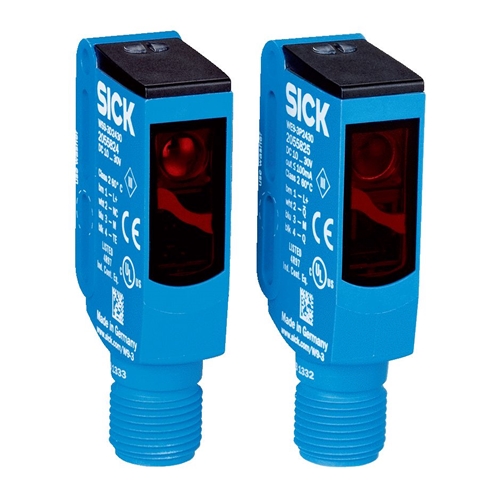

SICK (WSE9-3P2430)THROUGHBEAM PHOTOELECTRIC SENSOR

Sick

Your cart total:

.

Checkout

0

1049077






































Manufacturer:SICK
Model:WSE9-3P2430
Height (mm):52.2
Width (mm):12.2
Depth (mm):23.6
Weight (kg):0.013
Series:Photoelectric Sensors
Sensor/Detection Principles:Through-beam photoelectric sensor
Housing design:Rectangular
Mounting hole:M3
Sensing range max:0 m … 10 m
Sensing range:0 m … 7 m
Type of light:Visible red light
Light source:PinPoint LED
Wave length:650 nm
Light spot size (distance):Ø 25 mm (1 m)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 30 mA
Output type:PNP
Switching mode:Light/dark-switching
Output current Imax:< 100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, B, C
Protection class:III
Polarisation filter:Yes
Housing material:Plastic, VISTAL
Optics material:PMMA
Enclosure rating:IP 66, IP 67, IP 69K
Test input sender off:Sender off
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
Part number of individual components:Receiver, WE9-3P2430, 2055825, Sender, WS9-3D2430, 2055824
UL File Number:NRKH.E181493
