1049056

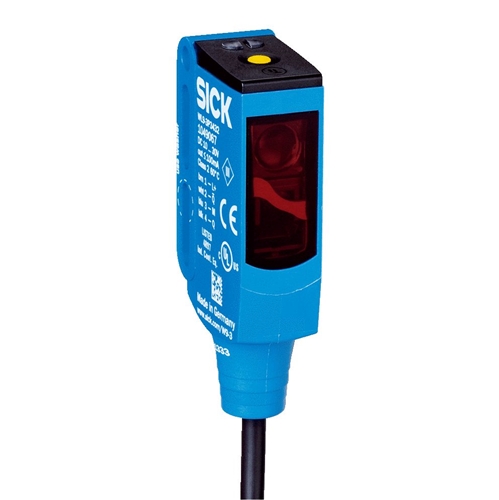

Sick Reflex Sensor

Sick

Your cart total:

.

Checkout

0

1049056








































Manufacturer:SICK
Model:WL9-3P1132
Height (mm):50
Width (mm):12.2
Depth (mm):23.6
Weight (kg):0.08
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor, auto collimation
Housing design:Rectangular
Mounting hole:M3
Sensing range max:0 m … 5 m
Sensing range:0 m … 3 m
Type of light:Visible red light
Light source:PinPoint LED
Wave length:650 nm
Teach-in:Single teach-in button
Sensitivity Adjustment:Teach-in
Light spot size (distance):Ø 45 mm (1.5 m)
Supply voltage:10 V DC … 30 V DC
Power consumption:< 30 mA
Output type:PNP
Output function:Complementary
Switching mode:Light/dark-switching
Output current Imax:< 100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Connection type:Cable, 4-wire, 2 m
Cable material:PVC
Conductor cross-section:0.14 mm²
Circuit protection:A, B, C
Protection class:III
Polarisation filter:Yes
Housing material:Plastic, VISTAL
Optics material:PMMA
Enclosure rating:IP 66, IP 67, IP 69K
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRKH.E181493
