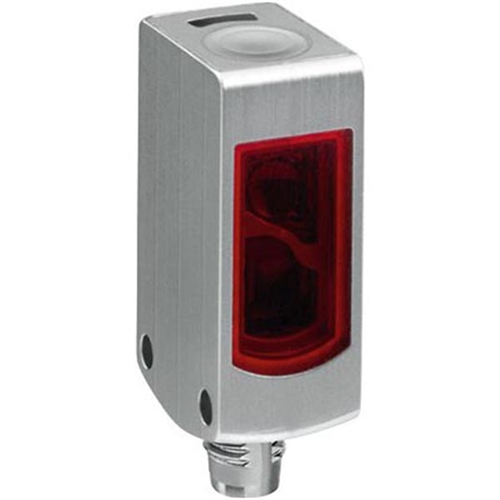

SICK WTB4S-3P2204V50 WHS-3 INOX SENSOR

Sick

Your cart total:

.

Checkout

0

1047652




































Manufacturer:SICK
Model:WTB4S-3P2204VS02
Height (mm):44.9
Width (mm):15.25
Depth (mm):22.2
Weight (kg):0.04
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular, Slim
Housing design:Washdown
Sensing range max:4 mm … 280 mm
Sensing range:10 mm … 150 mm
Type of light:Visible red light
Light source:PinPoint LED
Wave length:650 nm
Teach-in:Single teach-in button
Sensitivity Adjustment:Teach-in, cable
Light spot size (distance):Ø 2.5 mm (100 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 30 mA
Output type:PNP
Switching mode:Light switching
Output current Imax:< 100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Connection type:Connector M8, 4-pin
Circuit protection:A, B, C
Protection class:III
Housing material:Stainless steel 316L
Enclosure rating:IP 66, IP 67, IP 68, IP 69K
Ambient operating temperature:-30 °C … 70 °C
Ambient storage temperature:-30 °C … 75 °C
UL File Number:NRKH.E181493 & NRKH7.E181493
