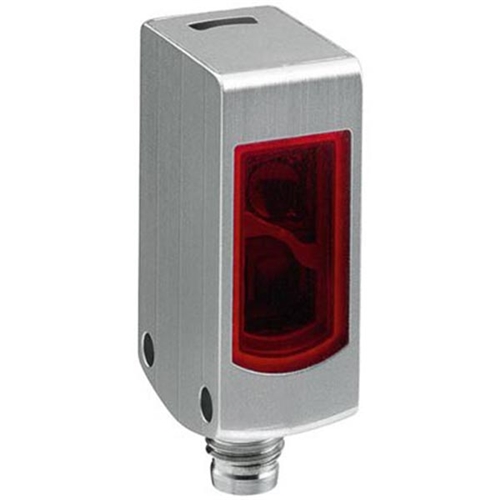

SICK WL4S3P3432V PHOTO ELECTRIC SENSOR

Sick

Your cart total:

.

Checkout

0

1046426






































Manufacturer:SICK
Model:WL4S-3P3432V
Height (mm):49.2
Width (mm):15.25
Depth (mm):22.2
Weight (kg):0.06
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor, auto collimation
Housing design:Rectangular
Housing design:Washdown
Sensing range max:0 m … 5 m
Sensing range:0 m … 3 m
Type of light:Visible red light
Light source:PinPoint LED
Wave length:650 nm
Teach-in:Single teach-in button
Sensitivity Adjustment:Teach-in
Light spot size (distance):Ø 45 mm (1.5 m)
Supply voltage:10 V DC … 30 V DC
Power consumption:< 30 mA
Output type:PNP
Output function:Complementary
Switching mode:Light/dark-switching
Output current Imax:< 100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Connection type:Cable with connector M12, 4-pin, 150 mm
Cable material:PVC
Circuit protection:A, B, C
Protection class:III
Polarisation filter:Yes
Housing material:Stainless steel 316L
Enclosure rating:IP 66, IP 67, IP 68, IP 69K
Ambient operating temperature:-30 °C … 70 °C
Ambient storage temperature:-30 °C … 75 °C
UL File Number:NRKH.E181493 & NRKH7.E181493
