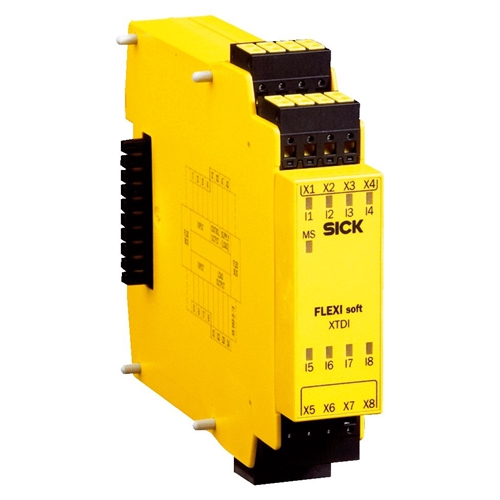

SICK FX3-XTDI80002 FLEXISOFT 8 INPUT GUARD

GUARD

Sick

Your cart total:

.

Checkout

10

1044124










































Manufacturer:SICK
Model:FX3-XTDI80002
Height (mm):96.5
Width (mm):22.5
Depth (mm):120.8
Weight (kg):0.139
Series:Safety Controllers
Emergency stop pushbuttons:Yes
Opto-electronic protective devices:Yes
Non-contact safety switches:Yes
Two-hand control systems:Yes
Electro-mechanical safety switches:Yes
Testable opto-electronic protective devices type 2:Yes
Operating mode selector switch:Yes
Control switches with lamp:Yes
Muting sensors:Yes
Safety integrity level:SIL3 (IEC 61508), SILCL3 (IEC 62061)
Category:Category 4 (EN ISO 13849)
Performance level:PL e (EN ISO 13849)
PFHd:4.0 * 1E-10
TM (mission time):20 a
Operating mode switching:Yes
Power consumption:5 W
Protection class:EN 61140
Number of inputs:8 single-channel
Input voltage HIGH:13 V DC … 30 V DC
Input voltage LOW:-5 V DC … 5 V DC
Input current HIGH:2.4 mA … 3 mA, 3.8 mA
Input current LOW:-2.5 mA … 2.1 mA
Configuration interface:Internal bus (FLEX BUS +)
Enclosure rating terminals:IP 20 (EN 60529)
Protection class housing:IP 40 (EN 60529)
Ambient operating temperature:-25 °C ... 55 °C
Storage temperature:-25 °C ... 70 °C
Air humidity:10 % ... 95 %, non-condensing
Climate conditions according to:EN 61131-2 (55 °C operating temperature, 95% rel. humidity)
Electromagnetic compatibility (EMC):EN 61000-6-2, EN 55011, EN 61131-2 (zone B)
Vibration resistance:5 Hz … 500 Hz (EN 61131-2)
Connection type:Cable gland
Connection type:Plug-in spring terminals
