1043815

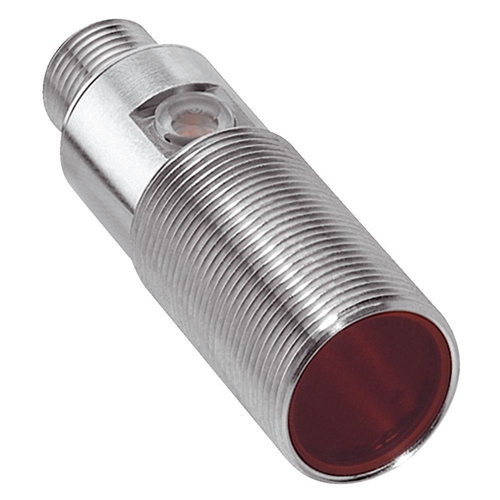

SICK MHL-15P3336V SENSOR

Sick

Your cart total:

.

Checkout

Discontinued

1043815




































Manufacturer:SICK
Model:MHL15-P3336V
Height (mm):52.9
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor, standard optics
Housing design:Cylindrical, straight
Thread diameter:M18 x 1
Optical axis:Axial
Sensing range max:35 mm … 5 m
Sensing range:35 mm … 3.5 m
Type of light:Visible red light
Light source:LED
Wave length:650 nm
Angle of dispersion:Ca. 1.5°
Light spot size (distance):Ø 80 mm (3,500 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:30 mA
Output type:PNP
Switching mode:Light switching
Signal voltage PNP HIGH/LOW:Uv - (< 2.9 V) / ca. 0 V
Output current Imax:100 mA
Response time:< 1.25 ms
Switching frequency:400 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, C, D
Protection class:III
Polarisation filter:Yes
Housing material:Stainless steel V4A (1.4404, 316L)
Optics material:PMMA
Enclosure rating:IP 67, IP 68, IP 69K
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-25 °C … 70 °C
UL File Number:NRKH.E189383 & NRKH7.E189383

No extended details available.
