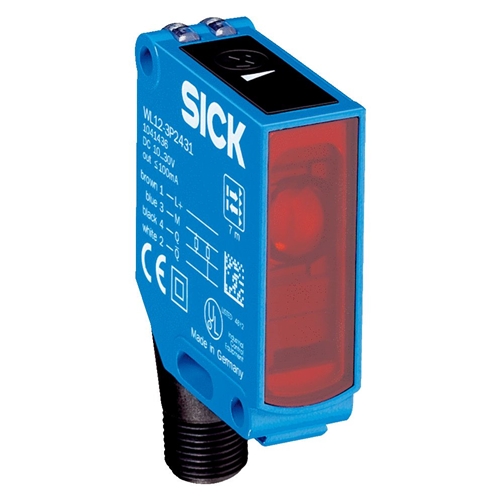

SICK WL12-3P2431 PHOTOELECTRIC SENSOR

Sick

Your cart total:

.

Checkout

0

1041436






































Manufacturer:SICK
Model:WL12-3P2431
Height (mm):48.5
Width (mm):15.6
Depth (mm):42
Weight (kg):0.12
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor, auto collimation
Housing design:Rectangular
Sensing range max:0 m … 7 m
Sensing range:0 m … 5 m
Type of light:Visible red light
Light source:LED
Wave length:640 nm
Sensitivity Adjustment:Potentiometer, 5-turn
Angle of dispersion:Ca. 1.5°
Light spot size (distance):Ø 100 mm (3 m)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 30 mA
Output type:PNP
Output function:Complementary
Switching mode:Light/dark-switching
Signal voltage PNP HIGH/LOW:> Uv - 2.5 V / ca. 0 V
Output current Imax:100 mA
Response time:< 330 µs
Switching frequency:1,500 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, C, D
Protection class:II
Polarisation filter:Yes
Housing material:Metal
Enclosure rating:IP 66, IP 67, IP 69K
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRKH.E181493 & NRKH7.E181493
