1041419

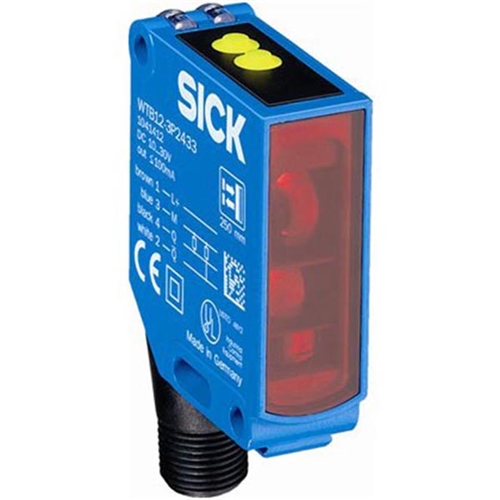

SICK WTB12-3N1231 PHOTOELECTRIC PROX SW

Sick

Your cart total:

.

Checkout

0

1041419






































Manufacturer:SICK
Model:WTB12-3N1231
Height (mm):48.5
Width (mm):15.6
Depth (mm):42
Weight (kg):0.28
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular
Sensing range max:20 mm … 350 mm
Sensing range:20 mm … 350 mm
Type of light:Visible red light
Light source:LED
Wave length:640 nm
Sensitivity Adjustment:Potentiometer, 5-turn
Light spot size (distance):Ø 6 mm (200 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 45 mA
Output type:NPN
Output function:Complementary
Switching mode:Light/dark-switching
Signal voltage NPN HIGH/LOW:Approx. VS/< 2.5 V
Output current Imax:100 mA
Response time:< 330 µs
Switching frequency:1,500 Hz
Connection type:Cable, 4-wire, 5 m
Cable material:PVC
Conductor cross-section:0.25 mm²
Circuit protection:A, C, D
Protection class:II
Housing material:Metal
Enclosure rating:IP 66, IP 67, IP 69K
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRKH.E181493 & NRKH7.E181493
