1040844

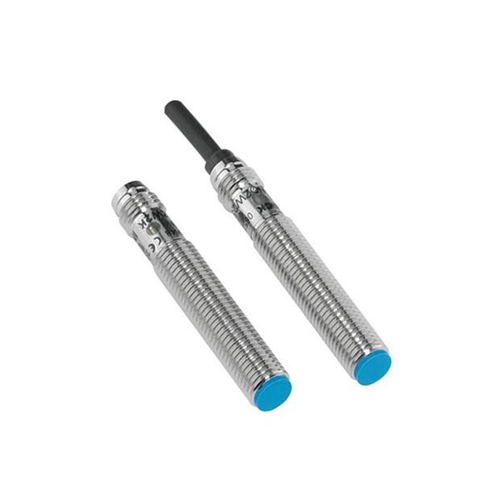

SICK IME08-1B5POZW2S INDUCTIVE PROXIMITY

SENSOR M8 Sn=1.5mm DC 3-WIRE PNP N/C IP6 7 NICKEL-PLATED BRASS PRE-CABLED (2 M ) P V C

Sick

Your cart total:

.

Checkout

0

1040844






































Manufacturer:SICK
Model:IME08-1B5POZW2S
Length (mm):52
Series:Inductive Proximity Sensors
Housing:Cylindrical
Thread size:M8 x 1
Sensing range Sn:1.5 mm
Assured sensing range Sa:1.215 mm
Installation type:Flush
Switching frequency:4,000 Hz
Output type:PNP
Output function:NC
Electrical wiring:DC 3-wire
Enclosure rating:IP 67
Connection type:Cable, 3-wire, 2 m
Housing:Standard
Supply voltage:10 V DC … 30 V DC
Ripple:< 10 %
Voltage drop:< 2 V
Power consumption:< 10 mA
Time delay before availability:< 100 ms
Hysteresis:5 % … 15 %
Repeatability:< 2 %
Temperature drift (% of Sr):± 10 %
EMC:According to EN 60947-5-2
Output current Ia:< 200 mA
Cable material:PVC
Short-circuit protection:Yes
Reverse polarity protection:Yes
Power-up pulse protection:Yes
Shock/vibration:30 g, 11 ms/10 Hz … 55 Hz, 1 mm
Ambient operating temperature:-25 °C … 75 °C
Housing material:Metal, Nickel-plated brass
Housing cap material:Plastic, PA6
Thread length:34 mm
Tightening torque, max:Typ. 5 Nm

No extended details available.
