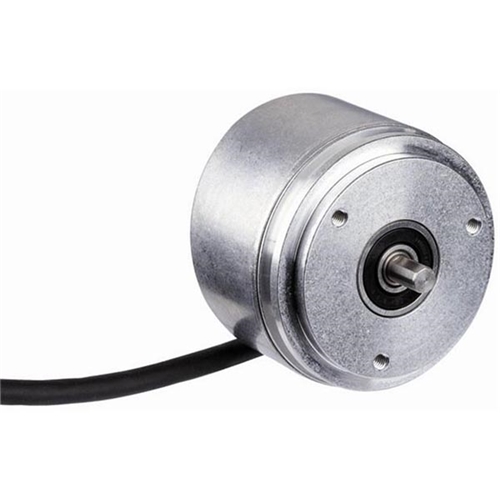

| Manufacturer: | SICK |
| Model: | DFS60E-S1EK01024 |
| Weight (kg): | 0.3 |
| Series: | Incremental encoders |
| Error limits: | ± 0.3 ° |
| Measuring step: | 90°/electronically/number of lines |
| Initialization time: | 40 ms |
| Pulses per revolution: | 1024 |
| Mechanical interface: | Solid shaft, Servo flange |
| Shaft diameter: | 6 mm x 10 mm |
| Start up torque: | 0.5 Ncm (20 °C) |
| Operating torque: | 0.3 Ncm (20 °C) |
| Maximum operating speed: | 10,000/min |
| Moment of inertia of the rotor: | 6.2 gcm² |
| Bearing lifetime: | 3.6 x 10 ^ 10 revolutions |
| Max angular acceleration: | 500,000 rad/s² |
| Permissible shaft loading radial/axial : | 40 N (axial), 80 N (radial) |
| Electrical interface: | 10 V … 32 V, HTL/Push pull, Cable, 8-pin, Universal, 1.5 m |
| Connection type: | Cable, 8-pin, Universal, 1.5 m |
| Maximum output frequency: | 300 kHz |
| Reference signal, number: | 1 |
| Reference signal, position: | 90°, electronically, gated with A and B |
| Operating voltage range: | 10 V … 32 V |
| Load current max: | 30 mA |
| Power consumption: | 0.5 W (without load) |
| MTTFd: mean time to dangerous failure: | 300 a (EN ISO 13849-1) |
| EMC: | According to EN 61000-6-2 and EN 61000-6-3 |
| Working temperature range: | 0 °C … 85 °C |
| Storage temperature range: | -40 °C … 100 °C, without package |
| Resistance to shocks: | 50 g (according to EN 60068-2-27) |
| Resistance to vibration: | 20 g, 10 Hz … 2,000 Hz (according to EN 60068-2-6) |
| Enclosure rating: | IP 65 (according to IEC 60529), shaft side, IP 67 (according to IEC 60529) |
| Permissible relative humidity: | 90 % (condensation of the optical scanning not permitted) |
