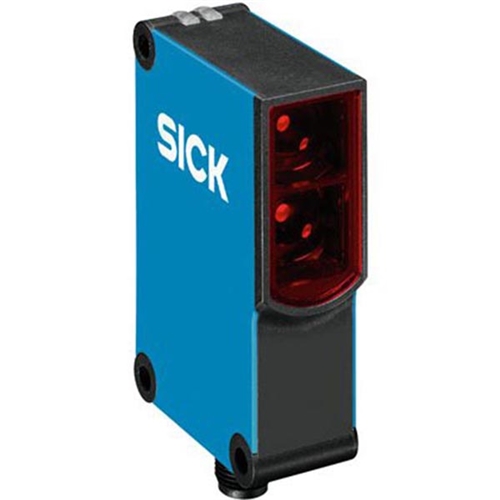

Sick (WL23-2P2430)Photoelectric Reflex Switch

Sick

Your cart total:

.

Checkout

Discontinued

1027785





































Manufacturer:SICK
Model:WL23-2P2430
Height (mm):80.6
Width (mm):24.6
Depth (mm):54
Weight (kg):0.1
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor, standard optics
Housing design:Rectangular
Sensing range max:100 mm … 10,000 mm
Sensing range:300 mm … 7,000 mm
Type of light:Visible red light
Light source:LED
Wave length:660 nm
Angle of dispersion:1.5°
Light spot size (distance):Ø 45 mm (2,700 mm)
Supply voltage:10 V DC … 30 V DC
Power consumption:< 35 mA
Output type:PNP
Output function:Complementary
Switching mode:Light/dark-switching
Switching current (switching voltage):Approx. VS -2.5 V/0 V
Output current Imax:< 100 mA
Response time:< 2.5 ms
Switching frequency:200 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, C, D
Protection class:II
Polarisation filter:Yes
Housing material:ABS, Plastic
Optics material:PMMA
Enclosure rating:IP 67
Ambient operating temperature:-25 °C … 60 °C
Ambient storage temperature:-40 °C … 70 °C
UL File Number:NRKH.E181493 & NRKH7.E181493
