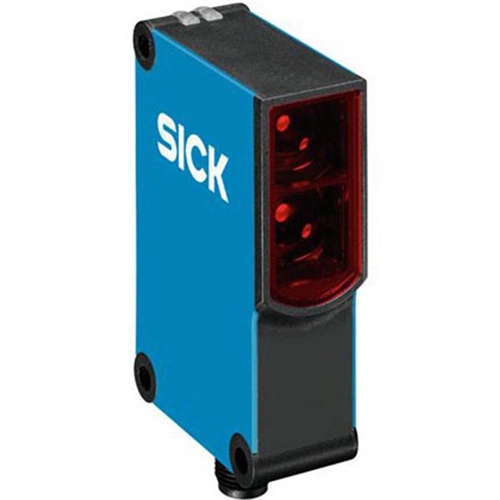

SICK WL27-357331

Sick

Your cart total:

.

Checkout

Discontinued

1027777








































Manufacturer:SICK
Model:WL27-3S3731
Height (mm):80.6
Width (mm):24.6
Depth (mm):54
Weight (kg):0.14
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor, standard optics
Housing design:Rectangular
Sensing range max:100 mm … 15,000 mm
Sensing range:100 mm … 11,000 mm
Type of light:Visible red light
Light source:LED
Light spot (distance):220 mm (10 m)
Wave length:660 nm
Sensitivity Adjustment:Potentiometer
Angle of dispersion:1.5°
Supply voltage:24 V AC/DC … 240 V AC/DC
Power consumption:< 2.5 VA
Output type:Relay
Output function:Change-over contacts
Switching mode:Light switching
Output characteristic:Electrically isolated
Switching current (switching voltage):0.11 A (250 V DC), 3 A (24 V DC), 3 A (250 V AC)
Response time:< 10 ms
Switching frequency:10 Hz
Connection type:Cable with connector Q7, 7-pin, AC/UC-coding, 150 mm
Cable material:PVC
Circuit protection:A, C
Protection class:II
Polarisation filter:Yes
Housing material:ABS, Plastic
Optics material:PMMA
Enclosure rating:IP 66, IP 67
Usage category:AC-15, DC-13, According to EN 60947-1
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRKH.E181493 & NRKH7.E181493
