1027452

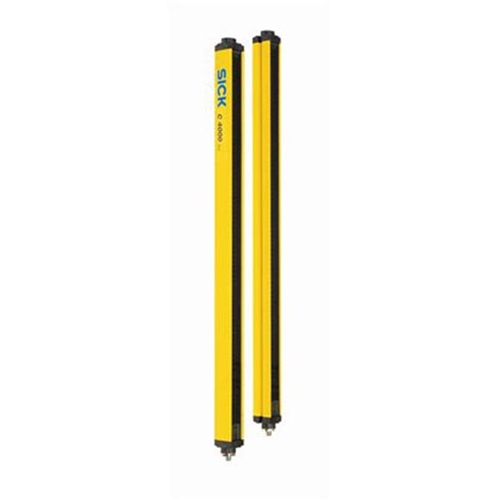

SICK C40S-1201AA310 ECO SENDER 1200MM

14MM RES

Sick

Your cart total:

.

Checkout

Discontinued

1027452





























Manufacturer:SICK
Model:C40S-1201AA310
Weight (kg):2.53
Series:Safety Light Curtains
Type:Sender
Protective field height:1,200 mm
Resolution:14 mm
Housing length:1,319 mm
Housing cross-section:48 mm x 40 mm
Type:Type 4 (IEC 61496)
Safety integrity level:SIL3 (IEC 61508), SILCL3 (IEC 62061)
Category:Category 4 (EN ISO 13849)
Performance level:PL e (EN ISO 13849)
PFHd:1.5 * 1E-08
TM (mission time):20 a
Supply voltage typical, from, to:24 V DC, 19.2 V DC, 28.8 V DC
Response time without beam coding:< 20 ms
Connection type:M12 x 5, straight
Maximum connection cable cross-section:0.25 mm²
Wave length:950 nm
Protection class:III
Enclosure rating:IP 65
Ambient operating temperature from … to:0 °C … 55 °C
Vibration resistance (checked to):5 g (IEC 60068-2-6)
Oscillation frequency from … to:10 Hz … 55 Hz
Shock resistance:10 g, 16 ms (IEC 60068-2-29)
Discontinued:This product will be discontinued soon. Replacement products: C4C-EA12010A10000, C4C-SA12010A10000

No extended details available.
