1025896

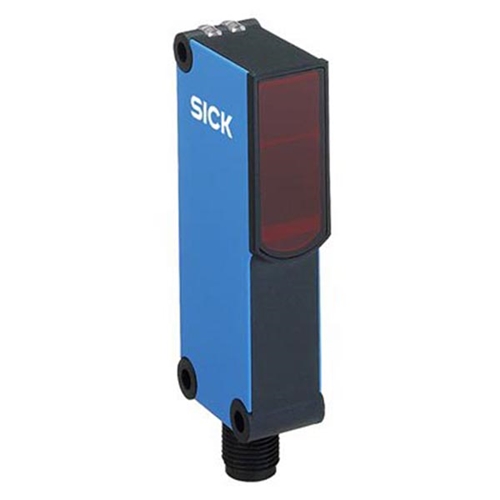

SICK PHOTO/EL SENS (1025896)

(WT18-3P430)

Sick

Your cart total:

0 Items €0.00

Checkout

Discontinued

Specification

1025896



































Manufacturer:SICK
Model:WT18-3P430
Height (mm):75.5
Width (mm):17.6
Depth (mm):33.5
Weight (kg):0.04
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular, Slim
Sensing range max:10 mm … 600 mm
Sensing range:50mm…600mm
Type of light:Visible red light
Light source:LED
Wave length:657 nm
Sensitivity Adjustment:Potentiometer, 4-turn
Light spot size (distance):Ø 15 mm (300 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:40 mA
Output type:PNP
Output function:Complementary
Switching mode:Light/dark-switching
Output current Imax:100 mA
Response time:< 700 µs
Switching frequency:700 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, C, D
Housing material:ABS, Plastic
Optics material:PMMA
Enclosure rating:IP 67
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRKH.E181493 & NRKH7.E181493

No extended details available.
