1022658

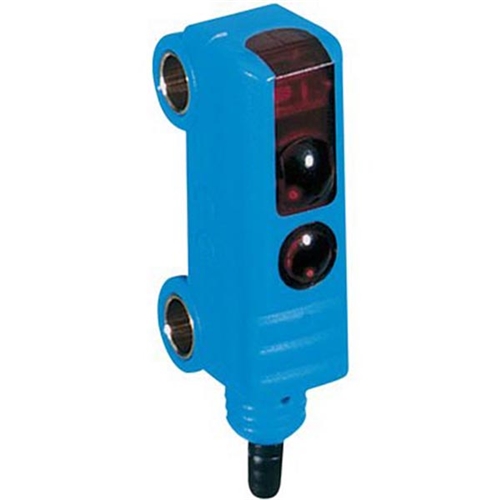

SICK WT2S-P211 PHOTOELECTRIC PROXIMITY

SWITCH

Sick

Your cart total:

.

Checkout

Discontinued

1022658




































Manufacturer:SICK
Model:WT2S-P211
Height (mm):25.1
Width (mm):7.6
Depth (mm):12.5
Weight (kg):0.02
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular, Slim
Sensing range max:1 mm … 15 mm
Sensing range:1 mm … 15 mm
Type of light:Visible red light
Light source:PinPoint LED
Wave length:660 nm
Focus:7 mm
Light spot size (distance):Ø 1.5 mm (7 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Output type:PNP
Switching mode:Light switching
Output current Imax:< 50 mA
Response time:< 0.6 ms
Switching frequency:800 Hz
Connection type:Cable with connector M8, 3-pin, 200 mm
Cable material:PVC
Cable diameter:Ø 2.4 mm
Circuit protection:A, C, D
Reverse polarity protection:Yes
Short-circuit protection:Yes
Housing material:ABS, Plastic
Optics material:PMMA
Enclosure rating:IP 67, IP 69K
Ambient operating temperature:-20 °C … 50 °C
Ambient storage temperature:-40 °C … 75 °C

No extended details available.
