1019229

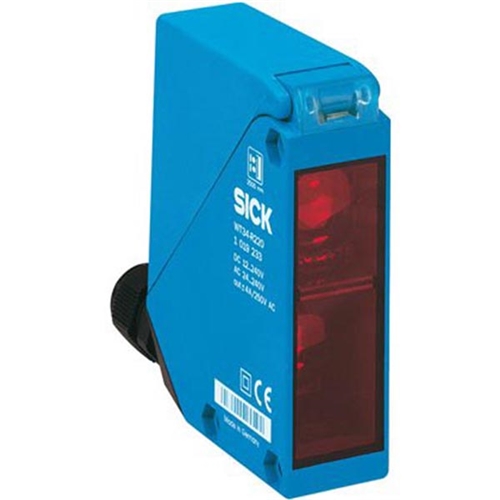

SICK PHOTOELECTRIC PROXIMITY SENSOR WT34-B410

BACKGROUND SUPPRESSION

Sick

Your cart total:

.

Checkout

0

1019229



































Manufacturer:SICK
Model:WT34-B410
Height (mm):92
Width (mm):27
Depth (mm):70
Weight (kg):0.14
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular
Sensing range max:100 mm … 2,500 mm
Sensing range:100 mm … 2,500 mm
Type of light:Infrared light
Light source:LED
Sensitivity Adjustment:Potentiometer
Light spot size (distance):Ø 80 mm (2,500 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 50 mA
Output type:NPN/PNP
Switching mode:Dark switching, Light switching
Switching mode selector:Selectable via light/dark selector, Selectable via PNP/NPN selector
Output current Imax:100 mA
Response time:< 500 µs
Switching frequency:1,000 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, C, D
Protection class:II
Housing material:ABS
Enclosure rating:IP 67
Test input sender off:TE to 0 V
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRKH.E181493 & NRKH7.E181493

No extended details available.
