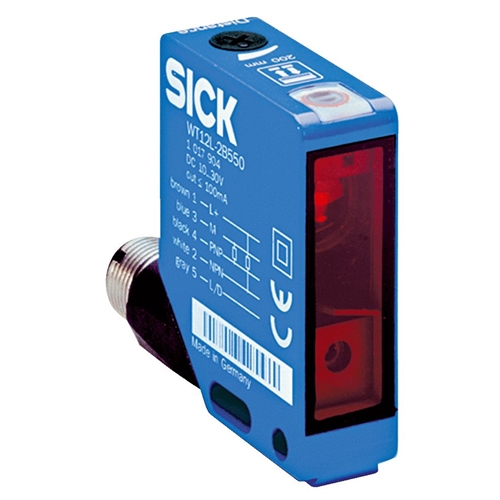

SICK SENSOR WL12L-2B530

Sick

Your cart total:

.

Checkout

0

1018252





































Manufacturer:SICK
Model:WL12L-2B530
Height (mm):49
Width (mm):15
Depth (mm):41.5
Weight (kg):0.13
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor, auto collimation
Housing design:Rectangular
Sensing range:0 m … 18 m
Type of light:Visible red light
Light source:Laser
Light spot (distance):0.8 mm (300 mm)
Wave length:650 nm
Sensitivity Adjustment:Potentiometer
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 55 mA
Output type:NPN/PNP
Switching mode:Dark switching, Light switching
Output characteristic:0 V or not connected
Switching mode selector:Selectable via L/D control wire
Signal voltage PNP HIGH/LOW:Uv - < 2.9 V, Uv V/0 V <= 1.5 V
Signal voltage NPN HIGH/LOW:Uv - < 2.9 V, Uv V/0 V <= 1.5 V
Output current Imax:100 mA
Response time:< 200 µs
Switching frequency:2,500 Hz
Connection type:Connector M12, 5-pin
Circuit protection:A, C, D
Protection class:II
Polarisation filter:Yes
Enclosure rating:IP 67, IP 69K
Ambient operating temperature:-10 °C … 50 °C
Ambient storage temperature:-25 °C … 75 °C
UL File Number:NRKH.E181493, CDRH-Conform (0312012-00)
