09700202817

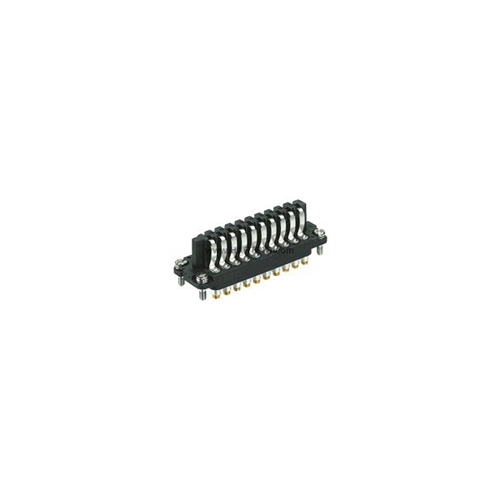

HARTING 20 PIN FEMALE INSERT

Harting

Your cart total:

.

Checkout

0

09700202817







































Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Yes
Size:16 A
Special Style:Female Insert (M)
Series:Staf
Termination Method:Screw terminal
Number of Contacts:20
Contact Resistance:<= 2 mOhm
Rated Current:10 A
Rated Voltage AC:25 V
Rated Voltage DC:60 V
Contact Identification, Min.:1
Contact Identification, Max.:20
Wire Gauge:1.5 mm2
Wire Gauge AWG:AWG 16
Colour, Insert:black
Material, Contact:copper alloy
Material, Insert:polyamide
Surface, Contacts:silver plated contacts
Flammability Insert Acc. to UL 94:HB
Rated Voltage Acc. to UL:50 V
Approval UL:Yes
Approval CSA:Yes
Specification:DIN EN 61 984DIN EN 61 984
Series, Insert:Staf 20
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:100 C
Tightening Torque:0.25 Nm
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make:Harting
Product Range :Staf 20 Pos. F Insert Screw
Height (mm):23
Width (mm):72.8
Depth (mm):22.8
Net Weight:58 g
