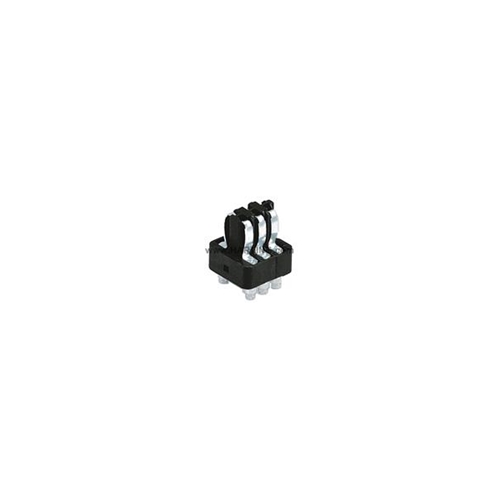

09700062812







































Mechanical Working Life - Mating Cycles:>= 500
RoHS Conformity:Yes
Size:3 A
Special Style:Female Insert (M)
Series:Staf
Termination Method:Solder terminal
Number of Contacts:6
Contact Resistance:<= 2 mOhm
Rated Current:0.416666666666667
Rated Voltage AC:25 V
Rated Voltage DC:60 V
Contact Identification, Min.:1
Contact Identification, Max.:6
Wire Gauge:2.5 mm2
Wire Guage AWG:AWG 14
Colour, Insert:black
Material, Contact:copper alloy
Material, Insert:polyamide
Surface, Contacts:silver plated contacts
Flammability Insert Acc. to UL 94:HB
Flammability Seal Acc. to UL 94:HB
Rated Voltage Acc. to UL:50 V
Approval UL:Yes
Approval CSA:Yes
Specification:DIN EN 61 984DIN EN 61 984
Series, Insert:Staf 6
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:100 C
Insulation Resistance:>= 10 Ohm
Exponent:10
Protective Earth Conductor (PE):Yes
Make:Harting
Product Range:STAF 6 FE -L
Height (mm):21
Width (mm):21
Depth (mm):23
Net Weight:14.83 g
