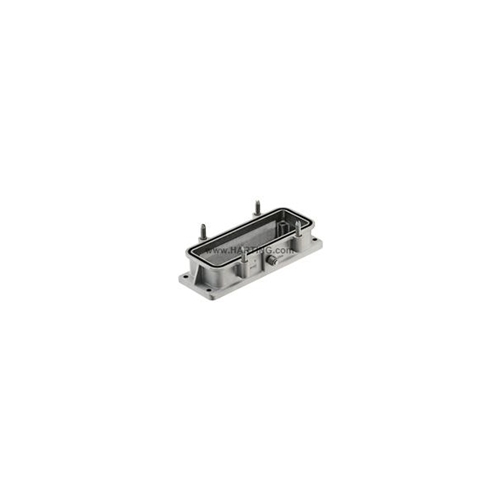

HARTING BASE PANEL

Harting

Your cart total:

.

Checkout

0

09620640381


























RoHS Conformity:Yes
Size:24 B
Special Style:with central locking lever
Locking Type:1 lever on the hood
Material, Locking Lever:Stainless steel
Locking Lever:central locking lever
Type of Hood - Housing:Housings, bulkhead mounting
Series:Han EMC
Surface, Hood - Housing:unpainted
Material, Seal:NBR
Material, Hood - Housing:aluminium die-cast
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Panel Cut Out (mm x mm):108 x 35
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han EMC 64 Base Panel for Central Lever
Height (mm):44
Width (mm):130
Depth (mm):69
Net Weight:167.1 g
