09620250301

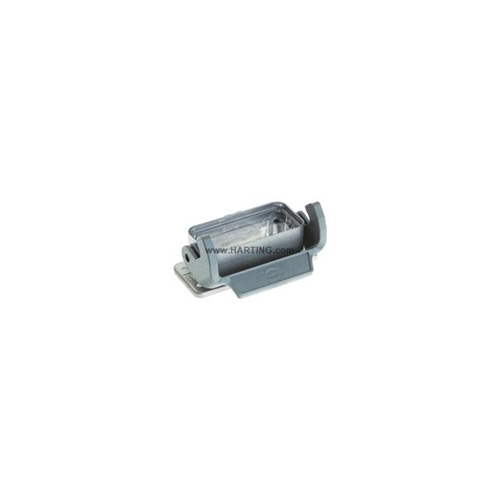

HARTING HOUSING BULKHEAD 16A

Your cart total:

.

Checkout

0

09620250301





























Han-Easy Lock:Yes
RoHS Conformity:Please contact our customer service
Size:16 A
Special Style:electrically conductive
Locking Type:1 lever on the housing
Material, Locking Lever:Polycarbonate
Locking Lever:Single locking lever
Type of Hood - Housing:Housings, bulkhead mounting
Series:Han EMC
Colour, Locking Element:RAL 7037 (grey)
Surface, Hood Housing:unpainted
Material, Seal:NBR
Material, Hood Housing:Aluminium die-cast
Housing:Yes
Hoods and Housings - Case of Operation:Hoods/Housings for higher EMC requirements
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Panel Cut Out (mm x mm):24 x 73
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make :Harting
Product Range :Han EMC 25 Base Panel
Width (mm):96
Depth (mm):33
Net Weight:77.9 g

No extended details available.
