09620150541

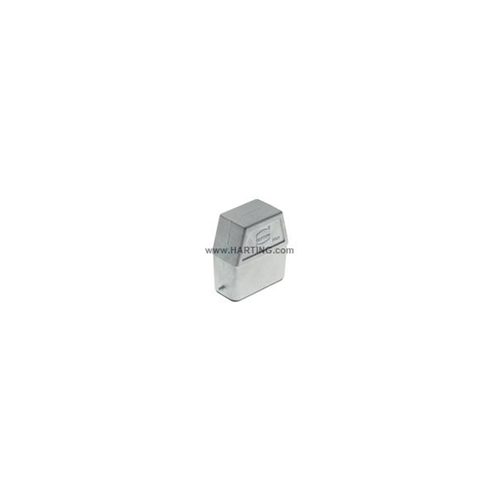

HARTING EMC HOOD SIDE ENTRY SIZE 10A

Your cart total:

.

Checkout

0

09620150541






























Han-Easy Lock:Yes
RoHS Conformity:Please contact our customer service
Size:10 A
Special Style:electrically conductive
Locking Type:1 lever on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:single locking lever
Type of Hood - Housing:Hoods
Series:Han EMC
Colour, Locking Element:RAL 7037 (grey)
Surface, Hood - Housing:Unpainted
Material, Seal:NBR
Material, Hood - Housing:aluminium die-cast
No. of Cable Entries:1
Size, Hood - Housing:Pg 21
Cable Entry:Side entry
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han EMC 15 Hood Side Entry PG 21
Height (mm):70
Width (mm):63.6
Depth (mm):30.5
Net Weight:133.2 g

No extended details available.
