09620100581

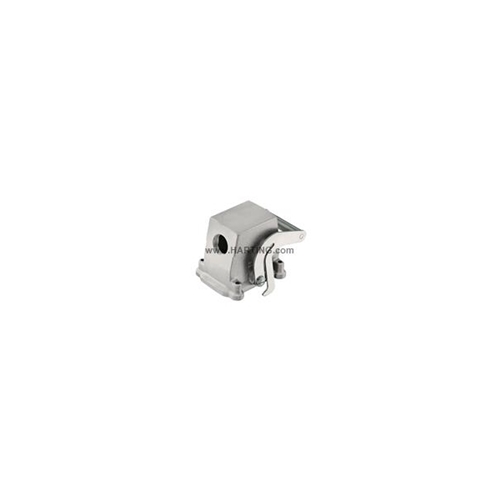

HARTING HAN EMC HOODE

Harting

Your cart total:

.

Checkout

0

09620100581





























RoHS Conformity:Please contact our customer service
Size:10 B
Special Style:with central locking leverelectrically conductive
Locking Type:1 lever on the hood
Material, Locking Lever:Stainless steel
Locking Lever:central locking lever
Type of Hood - Housing:Hoods
Series:Han EMC
Material, Screwing:stainless steel
Surface, Hood - Housing:unpainted
Material, Seal:NBR
Material, Hood - Housing:Aluminium die-cast
No. of Cable Entries:1
Size, Hood - Housing:Pg 21
Cable Entry:side entry
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range:Han EMC 10 Hood Side Entry PG 21 Central
Height (mm):75
Width (mm):86
Depth (mm):71
Net Weight:367.5 g

No extended details available.
