09620100381

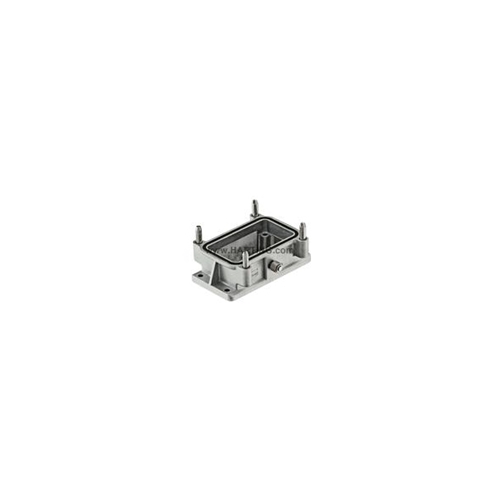

HARTING HAN EMC BASE PANEL

Harting

Your cart total:

.

Checkout

0

09620100381



























RoHS Conformity:Please contact our customer service
Size:10 B
Special Style:electrically conductive
Locking Type:1 lever on the hood
Material, Locking Lever:Stainless steel
Locking Lever:central locking lever
Type of Hood Housing:Housings, bulkhead mounting
Series:Han EMC
Surface, Hood - Housing:unpainted
Material, Seal:NBR
Material, Hood - Housing:aluminium die-cast
Hoods and Housings Case of Operation:Hoods/Housings for higher EMC requirements
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Panel Cut Out (mm x mm):60 x 35
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han EMC Base Panel for Central Lever
Height (mm):44
Width (mm):93
Depth (mm):69
Net Weight:133.8 g

No extended details available.
