09620030301

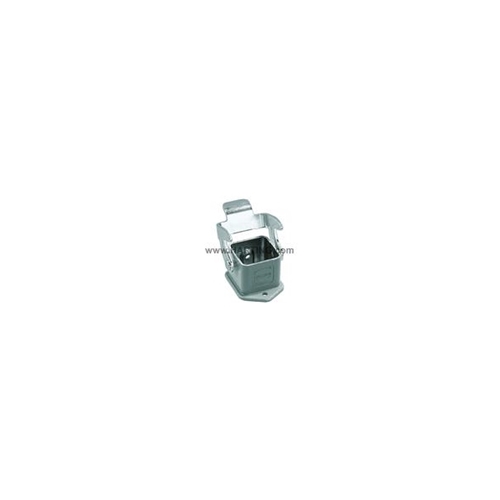

HARTING HAN 3 EMC BASE WITH LEVER

Harting

Your cart total:

.

Checkout

0

09620030301
























RoHS Conformity:Yes
Size:3 A
Special Style:Electrically conductive
Locking Type:1 lever on the housing
Material, Locking Lever:Steel, zinc-plated
Locking Lever:Double locking lever
Type of Hood - Housing:Housings, bulkhead mounting
Series:Han EMC
Surface, Hood - Housing:unpainted
Material, Seal:NBR
Material, Hood - Housing:zinc die-cast
Housing:Yes
Hoods and Housings - Case of Operation:Hoods/Housings for higher EMC requirements
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP44 / IP67 is achieved with seal screw 09 20 000 9918
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han 3 EMC Base Panel 1 Lever
Net Weight:33.88 g

No extended details available.
