| Gender: | male |
| Mechanical Working Life - Mating Cycles: | >= 500 |
| RoHS Conformity: | Please contact our customer service |
| Terminal Method, Cable, Copper: | IDC contacts, without tools |
| Transmission Characteristics: | Category 6 / Class E up to 250 MHz, according to ISO/IEC 11 801:2002 and EN 50 173-1 |
| Series: | Han-Modular |
| Specification: | Cat. 6 |
| Number of Contacts: | 8 |
| Cord Diameter, Max.: | <= 1.5 mm |
| Contact Identification, Min.: | 1 |
| Contact Identification, Max.: | 8 |
| Wire Gauge AWG, Stranded, Min.: | AWG 27 |
| Wire Gauge AWG, Stranded, Max.: | AWG 22 |
| Wire Gauge AWG, Solid, Min.: | AWG 27 |
| Wire Gauge AWG, Solid, Max.: | AWG 22 |
| Rated Current: | 1 A |
| Rated Voltage: | 50 V |
| Rated Impulse Voltage: | 0.8 kV |
| Pollution Degree: | 3 |
| Colour, Insert: | RAL 7032 (light grey) |
| Material, Insert: | polyamide |
| Type of Module: | Han RJ Industrial module |
| Type of Module, Amendment: | RJ Industrial RJ45 connector set |
| Flammability Insert Acc. to UL 94: | V 0 |
| Rated Voltage Acc. to UL: | 30 V |
| Approval UL: | Yes |
| Approval GL: | Yes |
| Specification: | IEC 60 603-7DIN EN 60 664-1DIN EN 61 984 |
| Limiting Temperature, Min.: | -40 C |
| Limiting Temperature, Max.: | 70 C |
| Insulation Resistance: | >= 10 Ohm |
| Exponent: | 10 |
| Data Rate Copper: | 10 Mbit/s100 Mbit/s1000 Mbit/s |
| Make : | Harting |

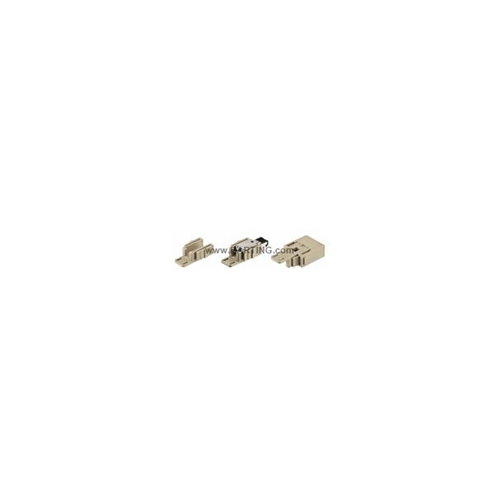

| Product Range : | Han-Modular RJ45 10G Cat6 plug 8p IDC |
| Height (mm): | 23.3 |
| Width (mm): | 57.3 |
| Weight: | 41.2 g |
